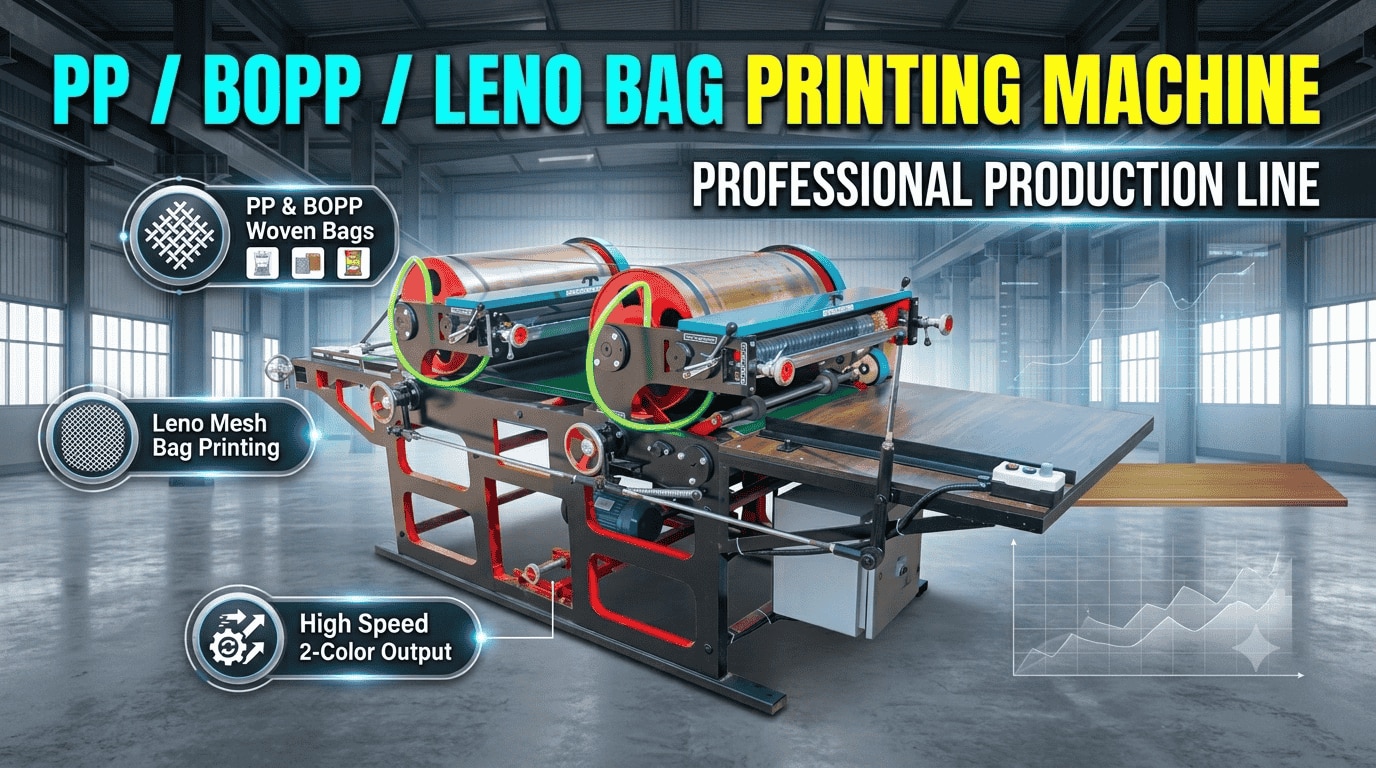

2 Colour Flexographic Printing Machine The 2 Colour Flexographic Printing Machine from Rentech Machine Private Limited is a rotary flexographic printing machine designed for printing on Kraft paper, HDPE, PP woven and Jute bags. The machine is developed for industrial packaging applications where clear and consistent two-colour printing is required. The machine features a robust cast-iron construction with machined heavy sidewalls, supported by heavy cross members. The feeding table is provided with an adjustable edge guide to assist accurate material feeding. Key Machine Features 2-colour rotary flexographic printing system Suitable for Kraft paper, HDPE, PP woven and Jute bags Robust cast-iron machined heavy sidewall construction Heavy cross-support structure for machine stability Feeding table with adjustable edge guide Draw-roller system with adjustable cam for synchronization Designed to maintain accurate bag printing position Heavy-wall seamless steel rollers Rollers are machined, ground and can be chrome-plated as an additional configuration Endless rubberized canvas conveyor belt with tension arrangement Standard nylon conveyor belt imported from Poland Branded reduction gearbox for maintaining operating speed Printing & Production Capability The machine is specified with a 2 HP, 1440 RPM, 440 V electric motor with a suitable worm reduction gearbox and stepped pulley arrangement. The documented machine configuration provides operating speeds of approximately 1,450 or 1,920 bags per hour. The specified colour registration accuracy is ±2 mm, supporting consistent positioning between the two printed colours. Printing & Bag Size The machine can handle: Maximum printing size: 28“ × 52” Maximum bag passing size: 30“ × 55” This makes the machine suitable for a range of woven and paper bag printing applications where the required print area falls within these dimensions. Machine Construction The machine uses heavy-duty construction intended for industrial operation. Its frame incorporates machined cast-iron sidewalls and heavy cross supports, while the rollers are manufactured from heavy-wall seamless steel pipes. The conveyor system includes an adjustable tensioning arrangement. Suitable Applications The machine is suitable for two-colour printing applications on: PP woven bags HDPE bags Kraft paper bags Jute bags Industrial packaging bags Agricultural packaging bags Other compatible bag materials Optional / Additional Systems The quotation document lists additional configurations such as Anilox Roll, Tracking Belt System, AC Drive, Bag Stopper System, Bag Counting System, Brush and Dryer System. These are configuration-dependent and should be selected according to the required application. Product Summary Rentech Machine Private Limited's 2 Colour Flexographic Printing Machine is a heavy-duty rotary printing solution for manufacturers requiring two-colour printing on PP woven, HDPE, Kraft paper and Jute bags. With a maximum printing area of 28“ × 52”, maximum bag passing size of 30“ × 55”, registration accuracy of ±2 mm, and documented production speeds of 1,450–1,920 bags/hour, the machine is configured for industrial bag-printing applications 1. What is the 2 Colour Flexographic Printing Machine? It is a rotary flexographic printing machine designed for two-colour printing on Kraft paper, HDPE, PP woven and Jute bags. 2. Which materials can be printed on this machine? The machine is specified for: PP woven bags HDPE bags Kraft paper bags Jute bags 3. How many colours can the machine print? The machine is designed for 2-colour flexographic printing. 4. What is the maximum printing size? The maximum specified printing size is 28 inches × 52 inches. 5. What is the maximum bag size that can pass through the machine? The maximum specified bag passing size is 30 inches × 55 inches. 6. What is the printing registration accuracy? The specified registration accuracy between colours is ±2 mm. 7. What production speed does the machine offer? The documented configuration provides two operating speeds of approximately 1,450 bags/hour and 1,920 bags/hour, using the specified motor, gearbox and stepped pulley arrangement

Auto Bag Cutting Machine – Product Description Rentech Machine Private Limited presents the FCM 850 High-Speed Fully Automatic Bag Cutting Machine, engineered for accurate and efficient cutting of PP/HDPE woven sacks and Leno fabrics, including both laminated and unlaminated materials. The machine combines automatic fabric feeding, web guiding, precision length measurement, print-mark detection, cutting and bag counting in an integrated system. It is designed to provide consistent bag length, accurate print registration and smooth continuous operation with minimal manpower. Key Features Model: FCM 850 Machine Type: Fully Automatic Woven Bag / PP Bag / Leno Fabric Cutting Machine Suitable for PP and HDPE woven sack fabric, laminated and unlaminated Suitable for Leno fabric Plain Hot Cutting System for unlaminated woven fabric Cold Cutting System for laminated woven fabric Mitsubishi Servo-Based Cold Cutter for precision cutting Floating Web Guide System for automatic fabric alignment and smooth web tracking SICK Print Mark Sensor for accurate print registration and synchronized cutting Automatic Mouth Opening System Ultra-Edge Precision Length Measuring System Automatic Bag Counting System Advanced control software for easy parameter adjustment and stable operation Technical Specifications Parameter Specification Unwinding Fabric Diameter Up to 1200 mm Maximum Roll Weight Up to 700 kg Fabric Width 12“ – 32” Cutting Length 17“ – 52” Cutting Length Accuracy ±1 mm Production Capacity 30–50 bags/min* Unwinding Motor 1 HP, 3-Phase with Bonfiglioli Gearbox Feeding Servo Motor 1.5 kW Mitsubishi Servo Heat Cutting Regular / Zig-Zag Type Cold Cutting Mitsubishi Servo-Based Cold Cutter Control System Mitsubishi Fully Automatic PLC-HMI Mitsubishi PLC Rated Power 10 HP Actual Power Consumption Approx. 6 HP Pneumatic Consumption 8 kg Machine Weight Approx. 1300 kg Machine Dimension 6 × 5.5 × 5 ft *Production capacity depends on fabric type, fabric width and operating conditions. Application The FCM 850 Automatic Bag Cutting Machine is suitable for manufacturers producing PP woven bags, HDPE woven sacks, Leno bags and laminated/unlaminated woven bags. Its servo-based cutting, automatic web guiding and print-mark synchronization make it suitable for applications requiring consistent bag dimensions and repeatable cutting accuracy. Rentech Machine Private Limited provides industrial bag-conversion machinery focused on automation, precision and reliable production performance. Auto Bag Cutting Machine – Q&A 1. What is the Rentech Auto Bag Cutting Machine? The Rentech FCM 850 is a high-speed, fully automatic woven bag cutting machine designed to cut PP/HDPE woven sack fabrics and Leno fabrics, including laminated and unlaminated materials. 2. What materials can this machine cut? The machine is designed for: PP woven fabric HDPE woven fabric Laminated woven fabric Unlaminated woven fabric Leno fabric 3. What is the production capacity? The machine can achieve approximately 30–50 bags per minute, depending on the material, fabric width and operating conditions. 4. What fabric width can the machine handle? The applicable fabric width is 12 inches to 32 inches. 5. What bag cutting length is possible? The machine can cut bag lengths from 17 inches to 52 inches. 6. How accurate is the cutting length? The specified cutting length accuracy is ±1 mm, helping maintain uniform bag dimensions during production. 7. Does the machine support both hot and cold cutting? Yes. It includes a hot cutting knife for suitable unlaminated fabrics and a Mitsubishi servo-based cold cutting system for laminated woven fabrics
